Broan 30" MTR1 Series Under-Cabinet Range Hood - MTR1303BL

SKU: MTR130BL

$299.00

Installation

Get it installed for as low as

Maximum quantity available reached.

REVIEWS

This under-cabinet range hood from Broan-NuTone is built to surpass industry standards with over 50 points of inspection and is engineered as a reliable ventilation solution. It’s up to 20% more effective at removing pollutants than the leading competitor, with powerful ventilation at 350 Max Blower CFM to capture and remove smoke and odours from your kitchen. Plus, it’s up to 44% quieter, so it won't interfere with daily life. The EZ1 Install System allows for a quick and easy one-person installation, while the ENERGY STAR® certification ensures both code compliancy and cost savings.

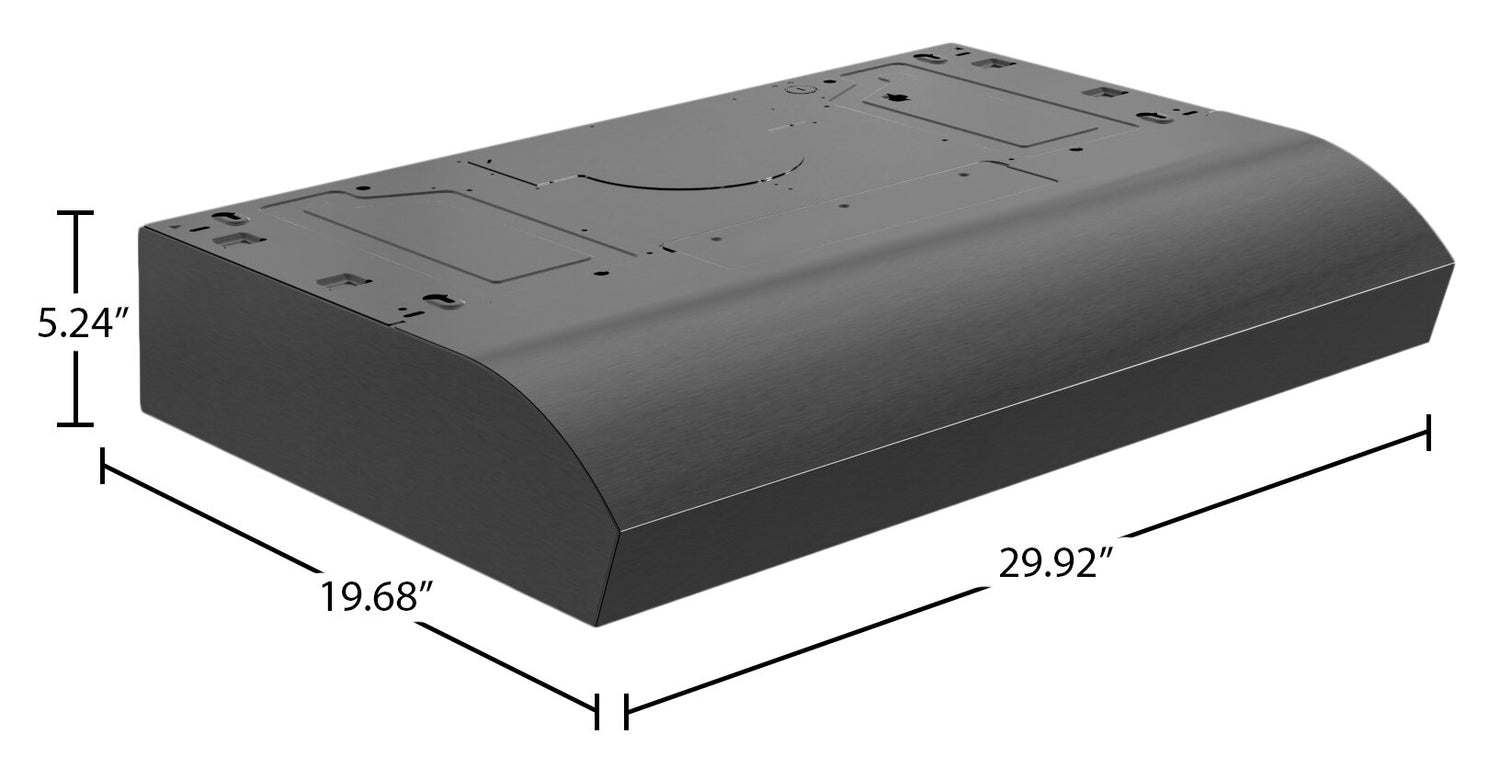

Dimensions

Width: 29.92" (76.0 cm)Height: 5.24" (13.3 cm)Depth: 19.68" (50.0 cm)

Shipping Dimensions

Width: 8.07" (20.5 cm)Height: 23.82" (60.5 cm)Depth: 33.86" (86.0 cm)

Weight

19.84 lbs (9.0 kg))

Manufacturer's Warranty

1 Year Limited
LED Modules: 3 Years

Unique Features
50 Points of Inspection: Expect a durable, long-standing ventilation solution engineered by the leader in indoor air quality. 20% More Effective: Trust in the Broan-NuTone brand to more effectively remove pollutants in your kitchen, with strong airflow at 350 Max Blower CFM. Up to 44% Quieter: With sound equivalent to a refrigerator running, this vent hood is up to 44% quieter than the competition at 1.5 sones on working speed. One Person Installation: With the included EZ1 brackets, this range hood is an easy install for a single person in half the time, for both professionals and DiYers. Energy Efficient: Both Energy Star certified and Title 24 compliant (with electric ranges), this kitchen hood is energy efficient and code compliant. Cooktop Lighting: Bright one-level, heat-resistant LED modules enhance your cooking experience. Easy to Clean: The easy-to-clean, fully enclosed bottom features two dishwasher-safe high-efficiency micro filters.

General Details
VSN	MTR1303BL
Finish Colour	Black
Overhead Lighting	1-Level LED

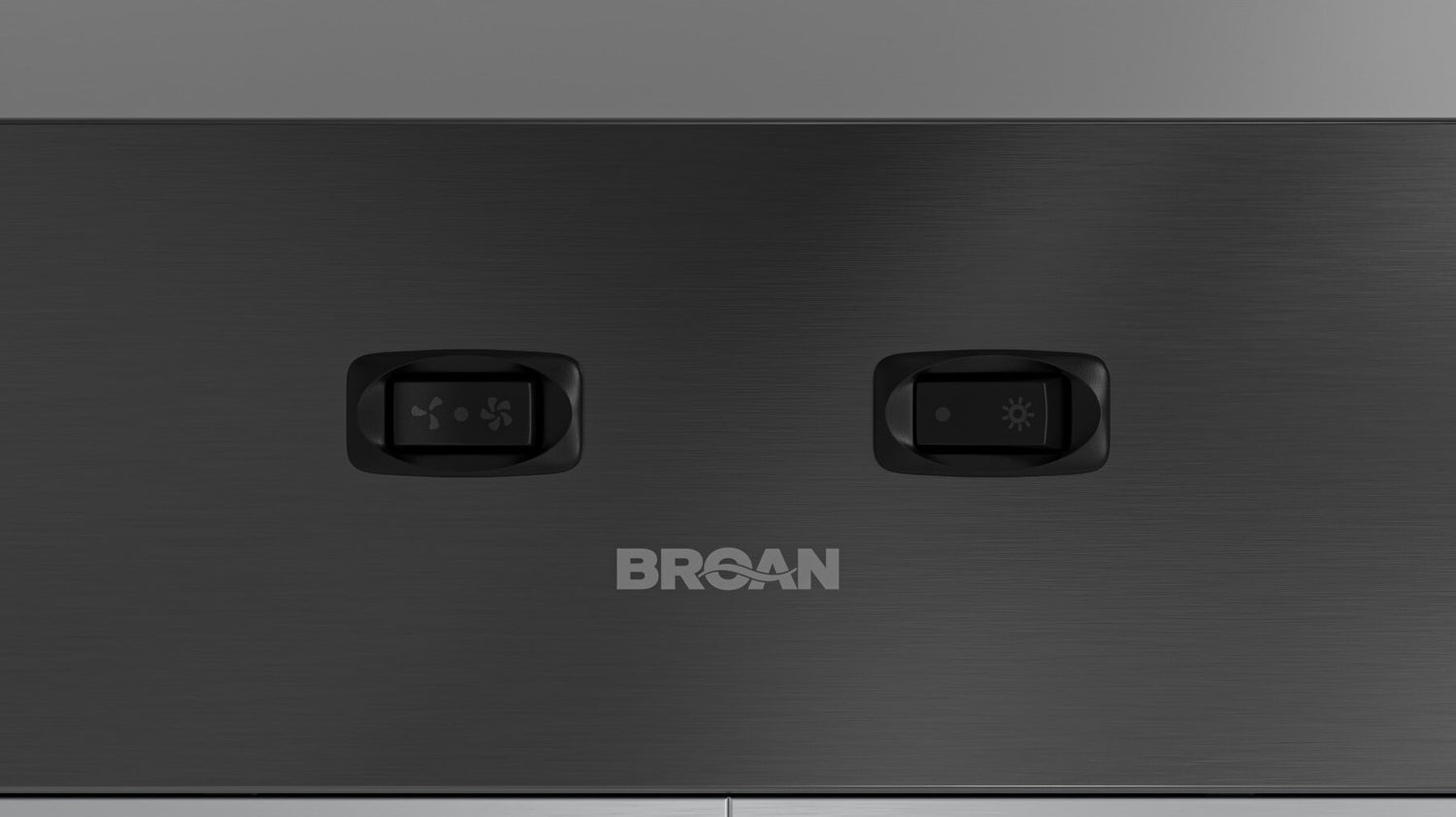

Control Panel	2-Speed Rocker Switch
This Product Includes	LED Bulbs, EZ1 Brackets
Power Details
Motor Details	2-Speed
Exhaust Power (CFM)	350
Ventilation Type	Horizontal, Vertical, Recirculating (charcoal filters sold separately)
Filtration Type	Micro Mesh
Installation Details
Installation Requirements	Ensure a minimum of 18 inches from cooktop to bottom of hood for electric ranges and 26 inches from cooktop to bottom of hood for gas ranges.
Sold Separately	7" Round Damper: BP87Q ADA Wiring Kit: HAWSK3 Make-Up Air Dampers: MD6TU, MD8TU, MD10TU Power Cord Kit: HCK44 Charcoal Filters: HPF30
Instruction Manual URL	Instruction Manual
Additional Details
Additional Information	Duct Orientation: Vertical – Rectangular: 1.5 Sones (Low) / 6.5 Sones (High) Horizontal – Rectangular: 2.0 Sones (Low) / 7.0 Sones (High) Round – Vertical: 2.0 Sones (Low) / 6.0 Sones (High)
